OMRON
Omron products are specifically designed for simple programming, operation and maintenance, as well as long service life so machine builders and end users benefit from an overall lower cost of ownership.
Machine Automation Platform
Omron offers a comprehensive range of products and services designed to increase the speed, versatility, and safety of your machines.
If you are developing a new machine or upgrading an existing model, look to Omron as your knowledgeable partner for superior automation.
Omron Automation & Safety produces a wide range of controller lines that can solve customer applications in a multitude of ways. Each controller line has its own specialties for different types of solutions.
OMRON SYSMAC
The Sysmac family of products continues to grow, while remaining true to its roots as one controller, with one connection, programmed using one software.
Sysmac Machine Controller
Logic, Motion, Vision, and Safety
The Sysmac architecture drastically reduces machine tact time, and programming complexity, improving performance and speeding development.
- Complete integration of Logic, Motion, Vision and Safety
- Synchronous control of all machine network devices
- Modular systems by enabling/disabling EtherCAT Nodes
- Project revision handling with roll-back/roll-forward
MOTION CONTROL
- Up to 64 axis control
- Single axis moves and multi-axis interpolation
- Selectable Primary Cycle Time: .125µs, 250µs to 8ms (in 250µs increments)
- Electronic gearing and camming synchronization
- On-the-fly electronic CAM changes
- Full control of axes group position, linear and circular interpolation
- Control of up to 8 Delta robots in 2 or 4 Delta robots in 1 ms
- Integrated robotics FB library for Delta-3 control
HARDWARE DESIGN
- Architecture based on Intel® Atom™ Processor
- The most compact controller in its class
- Built-in USB port and SD card slot
- Fan-less cooling (NJ-series CPUs)
- Battery backup for variable memory
- IEC 61131-3 standard Ladder, Structured Text, and Inline ST
- PLCopen Function Blocks for Motion Contro
Ethernet for Networking
Through Ethernet, the Sysmac Machine Automation Controller (MAC) connects to both Enterprise and Machine level devices. With the built-in EtherNet/IP port, access the machine HMI, programming software, other machines, or databases.
The EtherCAT machine network allows real-time control of devices such as I/O, Servos, Inverters, Vision and Smart Sensors.
EtherCAT Machine Network
EtherCAT is the fastest industrial network for machine automation, connecting to I/O, servos, inverters, vision and smart sensors.
It is Ethernet-based, fast, deterministic and highly efficient in terms of data transmission. All EtherCAT slave devices have dual ports, enabling line topology without extra hardware like switches, hubs, or routers.
Sysmac Studio for Machine Creators
The Sysmac Studio software suite programs and configures all Sysmac related hardware, including the NX/NJ Machine Automation Controller (MAC), G5 Servos, MX2 and RX Inverters, FQ-M Vision, NX I/O, NX Safety Controller, N-Smart sensors, and NA HMI.
The Sysmac Studio Integrated Development Environment (IDE) provides a single interface for configuration, programming, simulation, and commissioning, all with a common variable database.
This environment allows machine creators direct access to all elements of their system, eliminating all traditional data synchronization bottlenecks between control disciplines during development.
SQL Server Configuration
Simple setup and testing of log on to Microsoft and Oracle SQL servers
Design & Operability
Unified design environment is provided for programming, configuration and monitoring. It also offers intuitive navigation between control modes.
Configure Servos
Parameter setting, monitoring and data trace for servo drive and inverter.
Motion Control
The graphical CAM editor allows quick implementation of complex motion profiles. CAM tables can be modified on the fly.
Simulation
Motion trajectories in 3D can be pre-tested with advanced simulation of sequence and motion control. Simulation of single Function Blocks, POU’s (Program Organization Unit) or the entire program can be performed.
Synchronized Data Tracing
Easy system tuning thanks to integrated and synchronised data tracing of motion commands, position and speed feedback and I/O status and values.
Programming
Multi-tasking and fully compliant to IEC 61131-3 standard. The program editor includes smart support functions such as syntax error check and distinct color segregation of variables and symbols.
Safety Programming
The Function Block Diagram editor includes 79 safety FB/FUN. Conforms to IEC 61131-3 standard programming and PLCopen Function Blocks for Safety*.
Machine Controller
NX/NJ-SERIES CONTROLLERS
- One CPU for Logic, Motion, Vision, Safety, Robot, Database Connectivity, and Semiconductor Communication
- Scalable motion control: CPUs for 0, 2, 4, 8, 16, 32, 64, 128, and 256 axes
- One event log for controller, field devices, and network
- Selectable cycle times: .125/.25/.5/1/2/4/8 ms
- Centralized variable database
- EtherCAT and EtherNet/IP ports embedded
- Project encryption to serial number
- Scalable application size: CPUs for 64, 192, or 512 EtherCAT nodes
- NJ CPUs support most CJ-series I/O units
Network I/O
NX-SERIES I/O
- Over 70 models of I/O units including position interface, temperature inputs and integrated safety
- High-speed I/O units synchronized with the EtherCAT cycle
- NX Bus technology provides deterministic I/O response with nanosecond resolution
- Flexible system lets you freely mix safety controller and safety I/O units with standard NX I/O
- Automatic backup/restore of all I/O unit parameters
- Detachable terminal blocks with screwless cage clamps
- Safety Function Blocks conforming to IEC 61131-3 standard programming
- PLCopen Function Blocks for safety
Visualization
NA-SERIES VISUALIZATION
- Widescreen format: 7, 9, 12, and 15 inch
- Sysmac Studio integration and variable sharing
- USB Host & Slave, Dual Ethernet, Serial, and SD/SDHC
- Extensive Vector Graphics Library
- Word, Excel, PDF, and Video Playback
- VB.Net customization
Omron Servo Systems
G5 SERVO DRIVE
- High-response frequency of 2 kHz
- Built-in safety conforming ISO13849-1 Performance Level d
- High accuracy provided by 20 bit encoder
- Advanced vibration suppression functions
G5 SERVO MOTOR
- Power range from 50 W to 15 kW
- IP67 protection
- Low cogging torque
- Power range from 50 W to 15 kW
- IP67 protection
- Low cogging torque
LINEAR SERVO
- Ironless and iron-core motor types
- 3rd Party linear and rotary motor control
- Safety conforming ISO13849-1 PL-d
- High-response frequency of 2 kHz
- Real time auto-tuning
- Advanced tuning algorithms
Omron Inverters
MX2 V1 INVERTER
- Power range up to 15 kW
- Torque control in open loop
- 200% starting torque
- Dual rated VT 120%/1 min and CT 150%/1 min
- Drive Programming
RX V1 INVERTER
- Power range up to 132 kW
- Sensor-less and closed-loop vector control
- High starting torque in open-loop (200% at 0.3 Hz)
- Full torque at 0 Hz in closed-loop
- Dual rated VT 120%/1 min and CT 150%/1 min
- Drive Programming

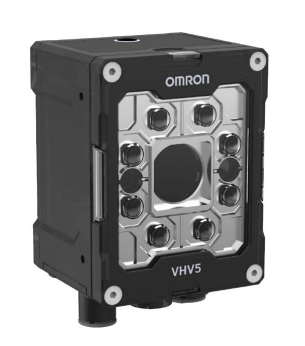

Omron Vision & Sensing
FQ-M & FH SERIES
- Designed for High Speed Motion Interface
- Fast and powerful Object Recognition
- Network Connectivity allows ease of I/O mapping
- Smart Calibration provides simple coordinate interface
- Vision Sensor provides compact solution
- Vision System includes quad core processing for inspection advantage
ZW MEASUREMENT SENSOR
- Compact and lighter weight fiber displacement sensor
- Stable measurements for any material with same mounting position
- Robust sensor head structure
- Compact and lighter weight fiber displacement sensor
- Stable measurements for any material with same mounting position
- Robust sensor head structure
N-SMART SENSORS
- E3NX-FA Fiber Sensors - One amplifier with over 300 compatible fiber head options
- E3NC-L Compact Laser Sensors - 2 types of heads are available for long distance or small spot detection
- E3NC-S Ultra-compact CMOS Laser Sensors - Stable detection of glossy and matte-black workpieces with the industry’s smallest sensor head*
